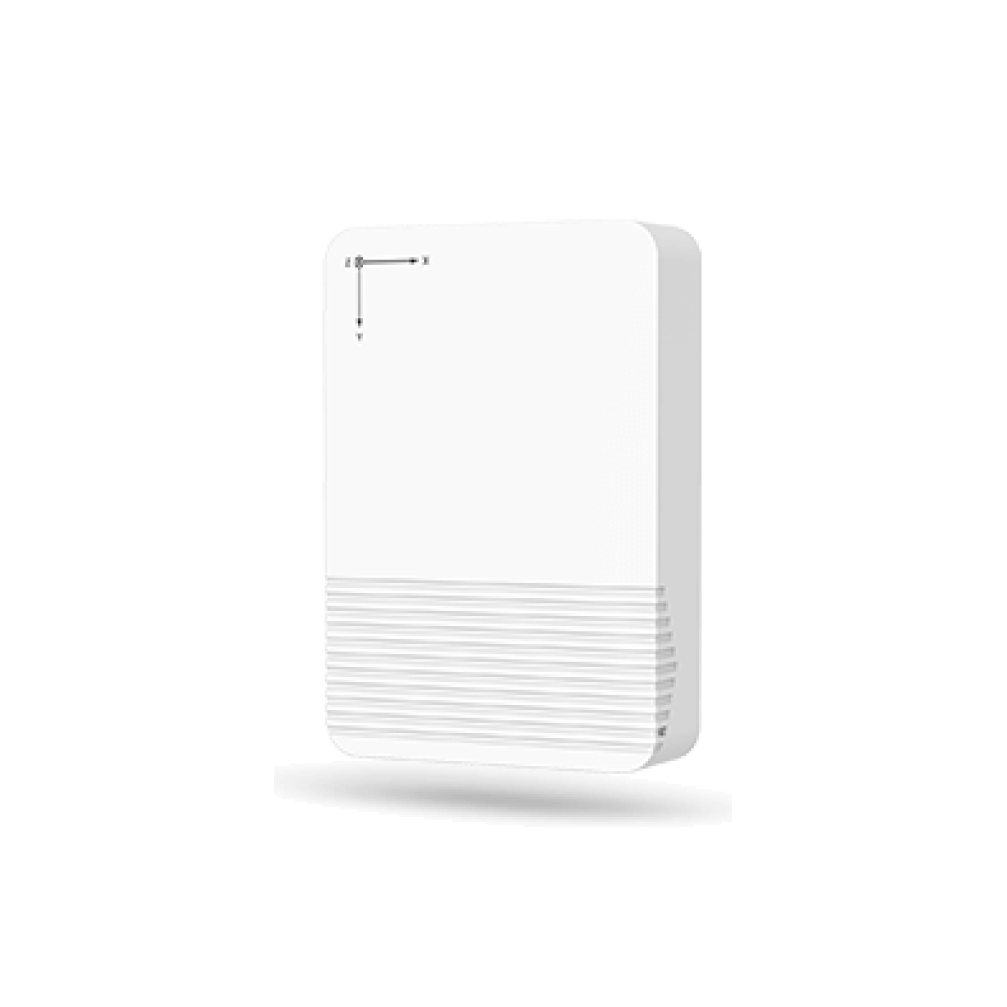

Tilt Sensor
Highly customizable / High Accuracy and Reliability / Extended battery life / LoRaWAN

High Accuracy and Reliability

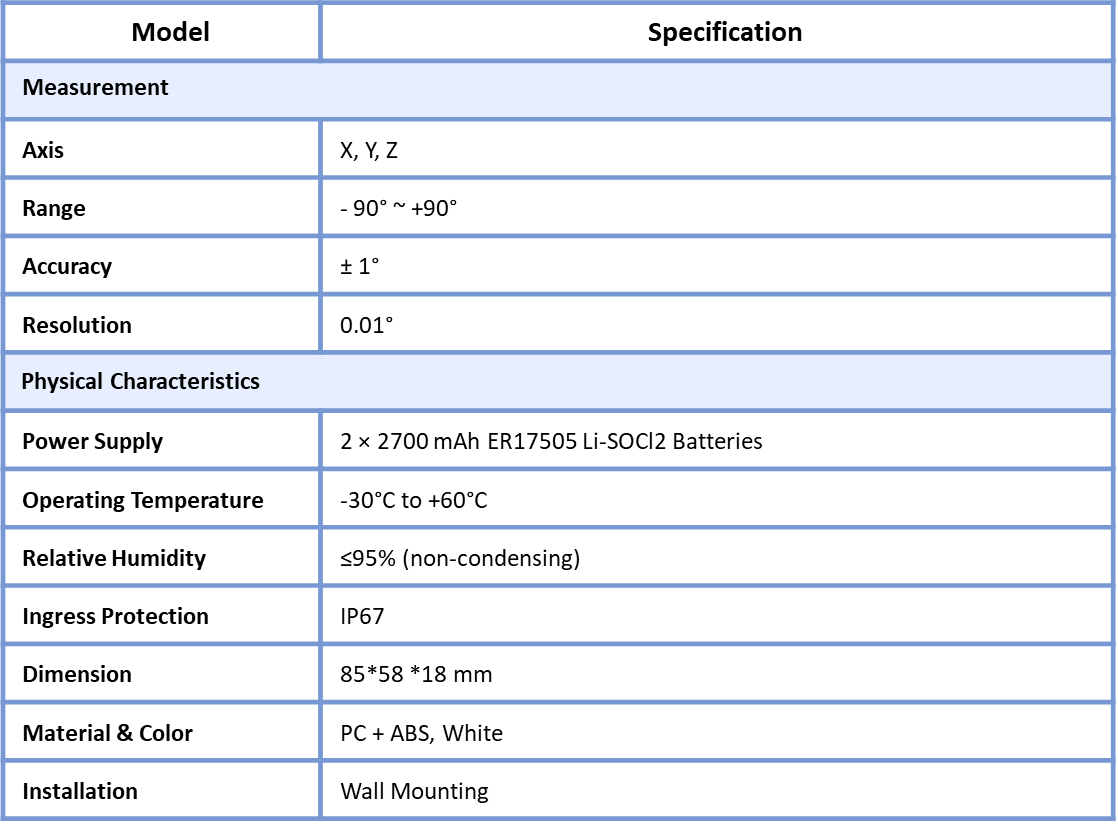

Utilizes advanced MEMS accelerometers for precise and stable measurement of tilt angles on the X, Y, and Z axes

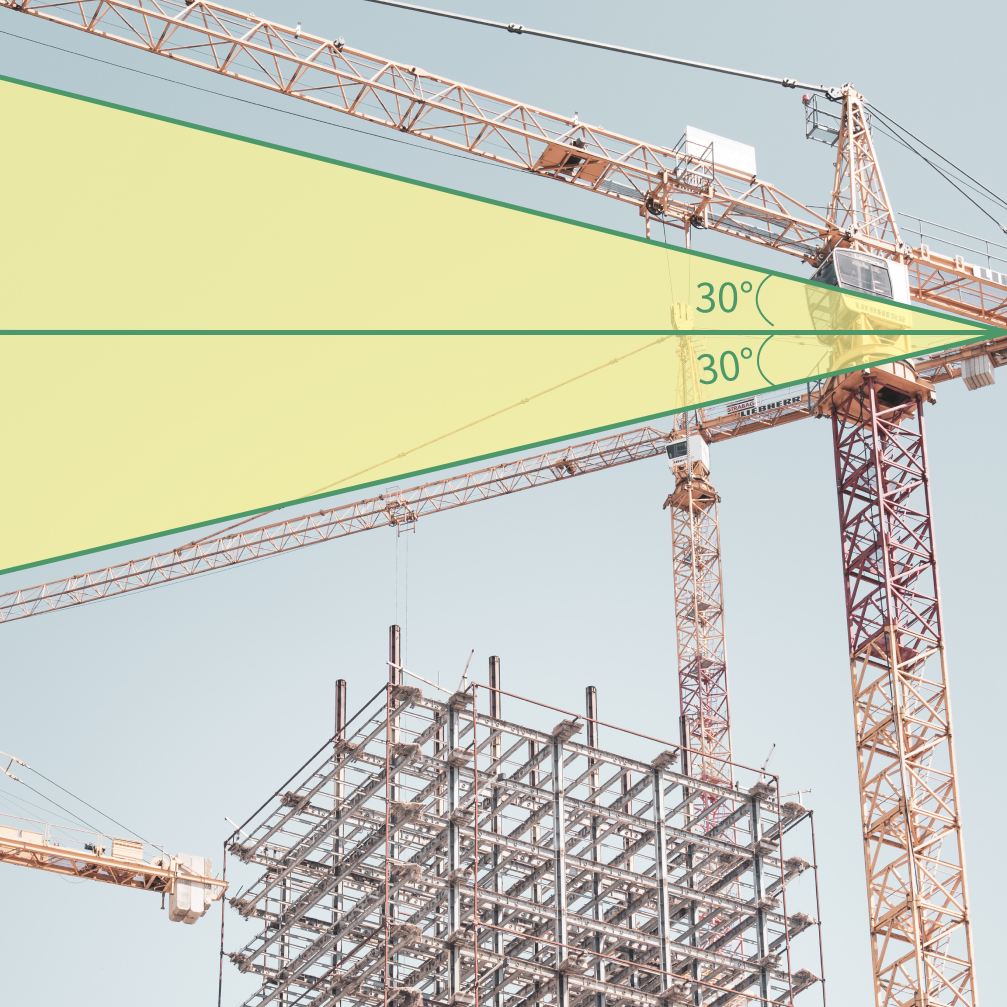

Wide measurement range from -90° to +90°
Ultra-high resolution of 0.01° and accuracy within ±1°

Customizable thresholds and alarm rules
Supports up to 36 custom alarm rules for X/Y/Z axes
Meets complex angle monitoring requirements

Customizable initial positioning
Enables setting any plane as the relative starting point
Simplifies installation steps

High IP67 protective performance

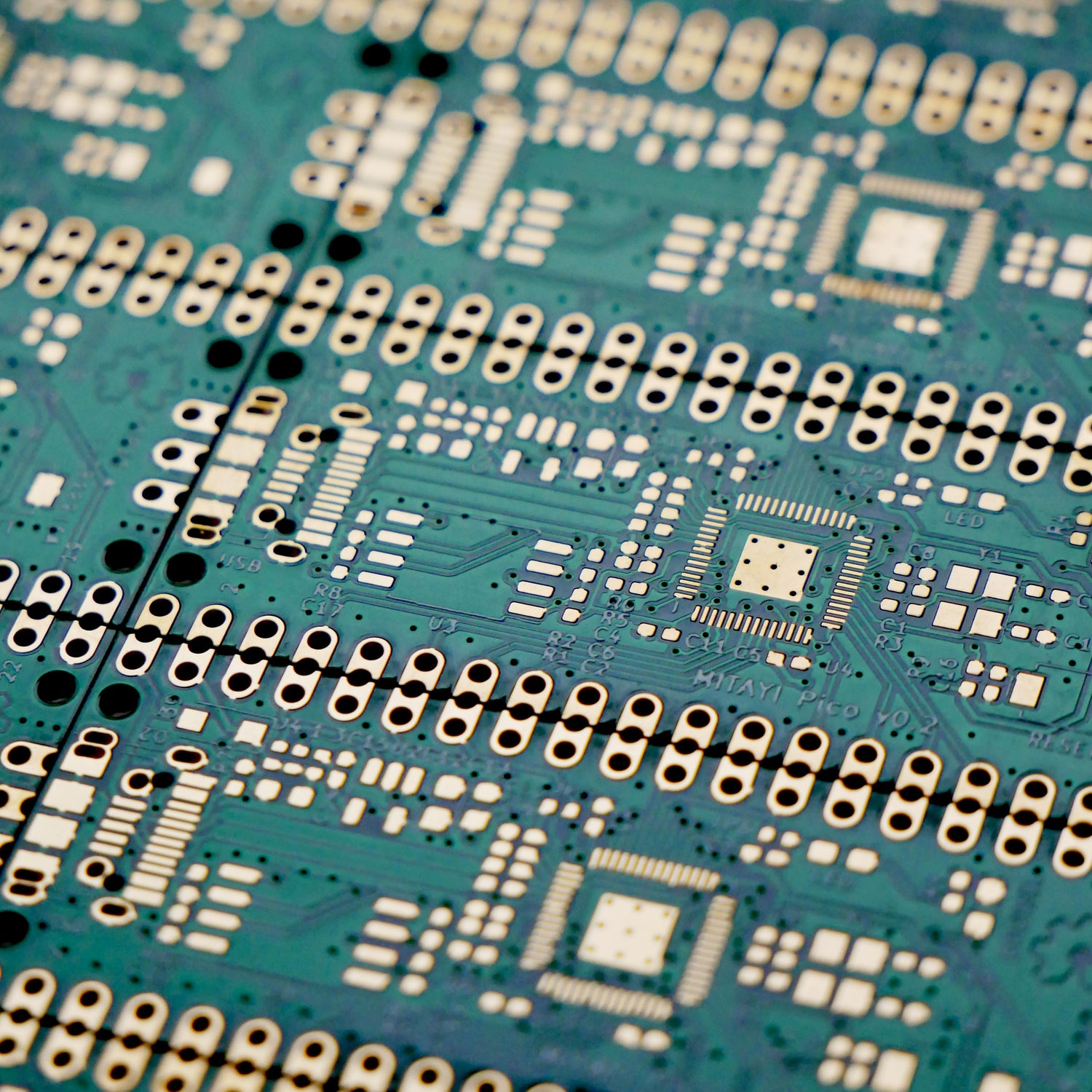

The mainboard is coated with moisture-proof paint
Multi-layer structure and sealed ring design achieve IP67 protection
Stable operation in harsh outdoor environments

Versatile installation methods
Supports two installation types: screw fixation and cable tie
Features anti-theft locking screws to prevent malicious disassembly
Supports wireless configuration via smartphone NFC

Extended battery life
Low power consumption
Powered by two 2700mAh ER14505 lithium-thionyl chloride batteries
Battery life extends over 3 years

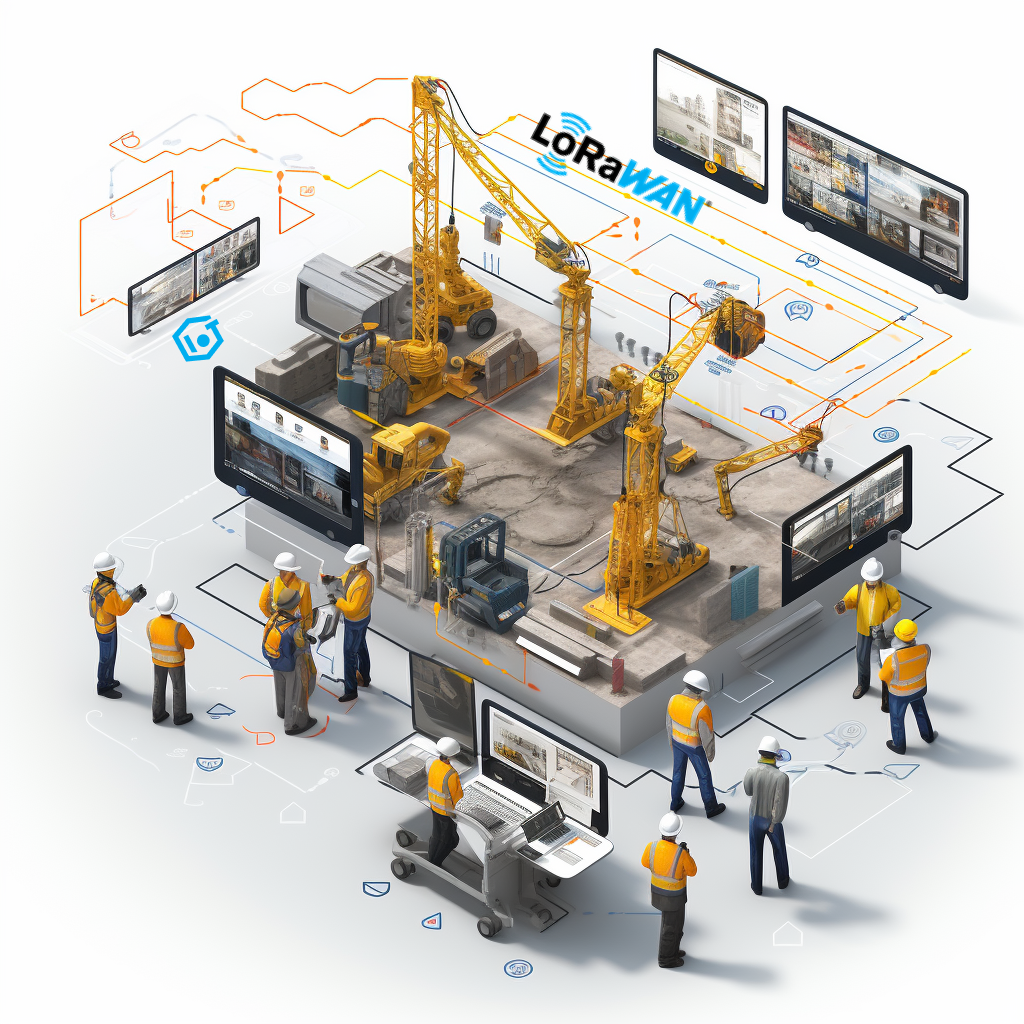

LoRaWAN® Based
Penetrating Signals: data transmission range up to 2 km in urban areas and
15 km in rural areas
High Compatibility: compliant with standard LoRaWAN® gateways and network servers
